Explore Advanced Microfinishing Solutions
Microfinishing Products
We manufacture a full range of microfinishing solutions, from flexible machines designed for low volume, high accuracy components to dedicated OEM machines for high volume production. Each product is designed to your exact specifications.
High Volume Production Cranks and Cams

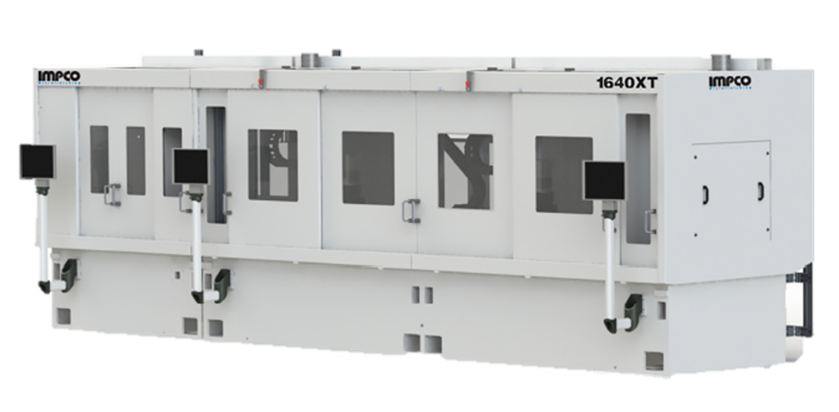

1640XT
- Outside diameter crankshaft or camshaft microfinisher
- Multi-level processes integrated into one fully functional production system
- Gantry load
- Max part length 760 mm

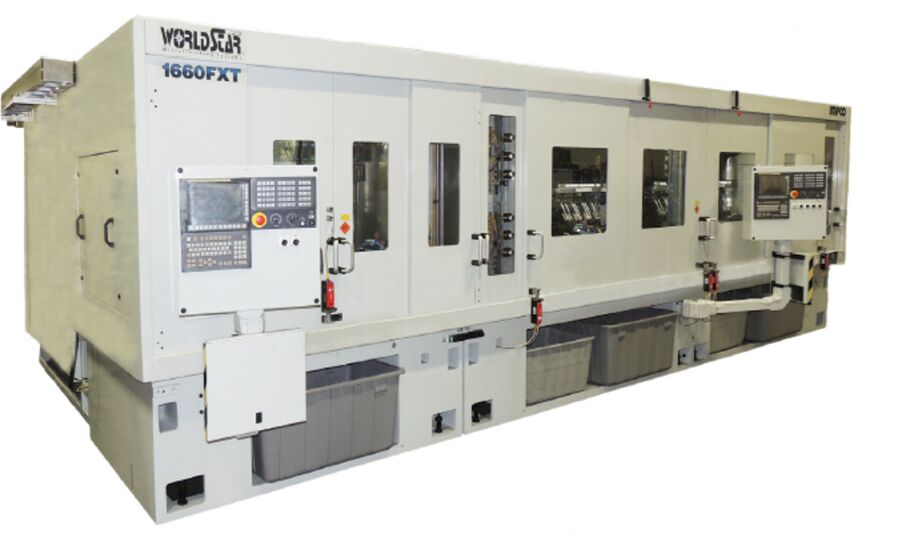

1660FXT
- Outside diameter crankshaft or camshaft microfinisher
- Repeatability and accuracy with large component capacity and flexibility
- Main bearing and rod bearing diameters
- Max part length 760 mm

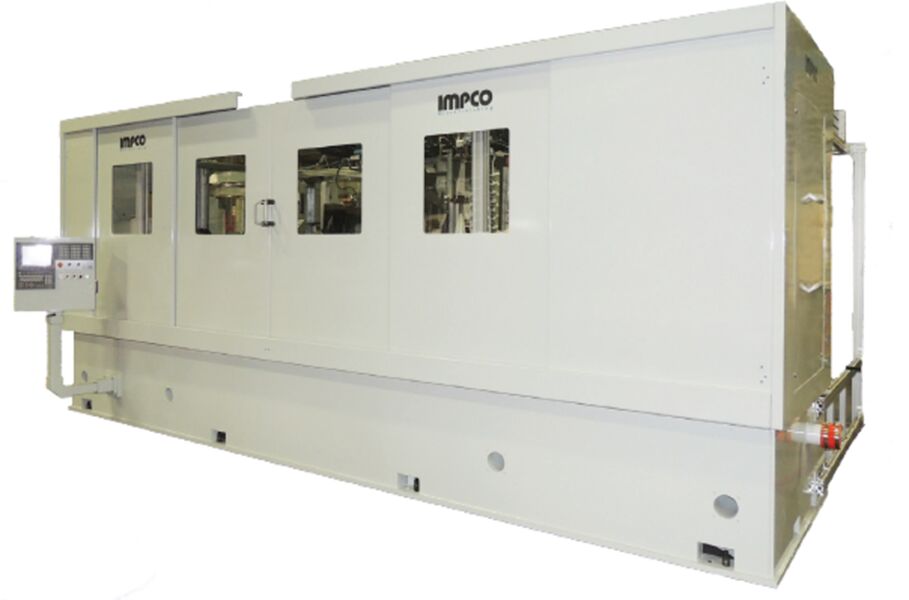

1240HD
- Outside diameter microfinisher for heavy/industrial, marine and power-generation crankshafts.
- Good for low volume production or repair work
- Max part length 5000 mm
- Max part diameter 200mm – Mains; 150mm – Pins
Medium and Low Volume Cranks and Cams

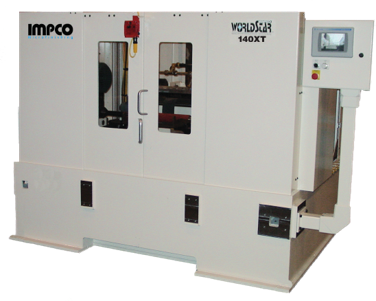

140XT
- Outside diameter microfinishing for camshafts, crankshafts, balance shafts, printing drums, pump gears
- Good for low production repair work
- Max part length 914 mm
- Max part diameter 355 mm
1740XT
- Outside diameter camshaft microfinisher
- Fast, repeatable microfinisher for high volume production
- Modular base units can be customized to match production requirements
- Max part length 460 mm

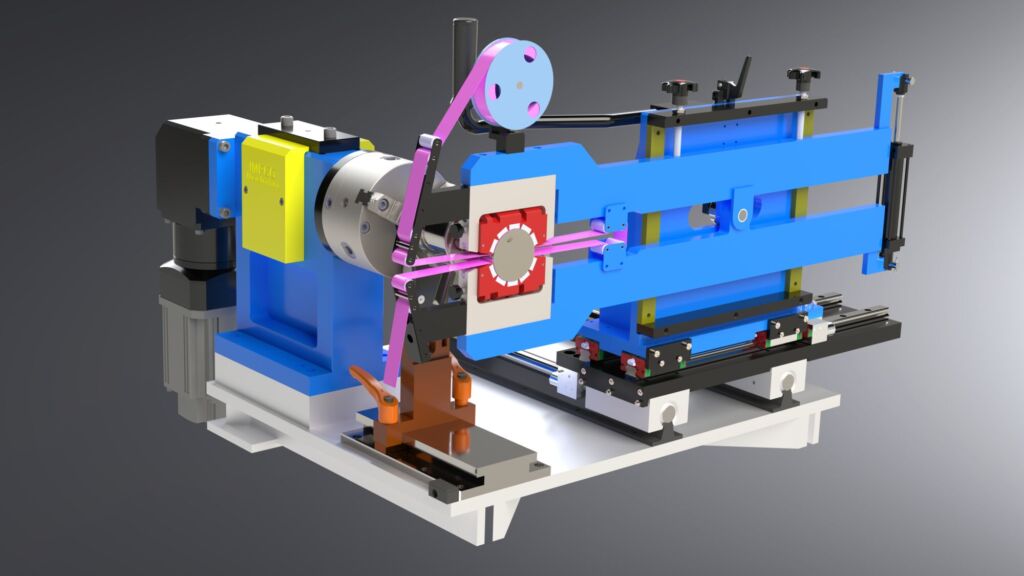

Atlas FM-100
- Outside diameter camshaft and crankshaft microfinisher
- Simple, operator-friendly control with manual, operator-guided sequencing
- Compact 2 meter footprint with optional accessories available
- Max part length 1000 mm
Atlas SA-100
- Outside diameter crankshaft microfinisher
- High volume, semi-automatic achieves GBQ Level I polishing
- Max part length 1000 mm, though larger machines (Atlas SA-250) can polish up to 2500mm length
- Max part diameter 85 mm
Transmission Components

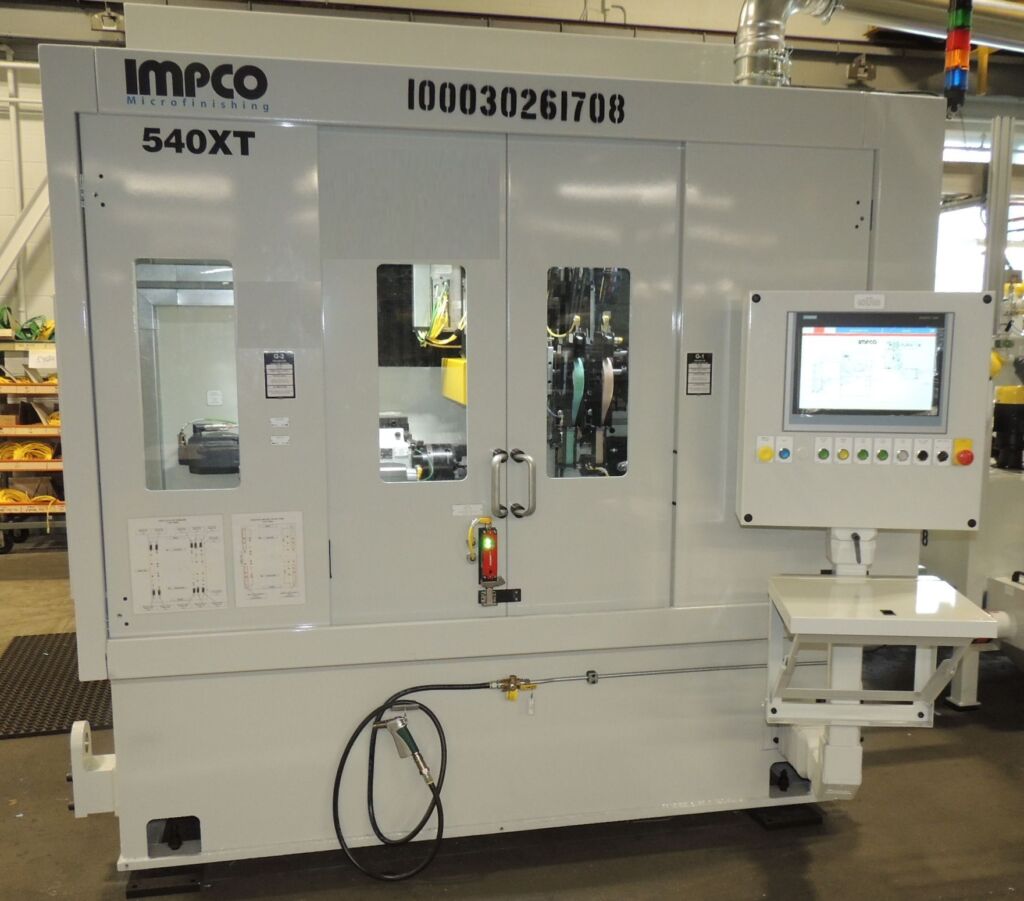

540
- Outside diameter compact microfinisher for transmission shafts
- Good for high volume finishing
- Max part length 525mm
- Max part diameter 85mm

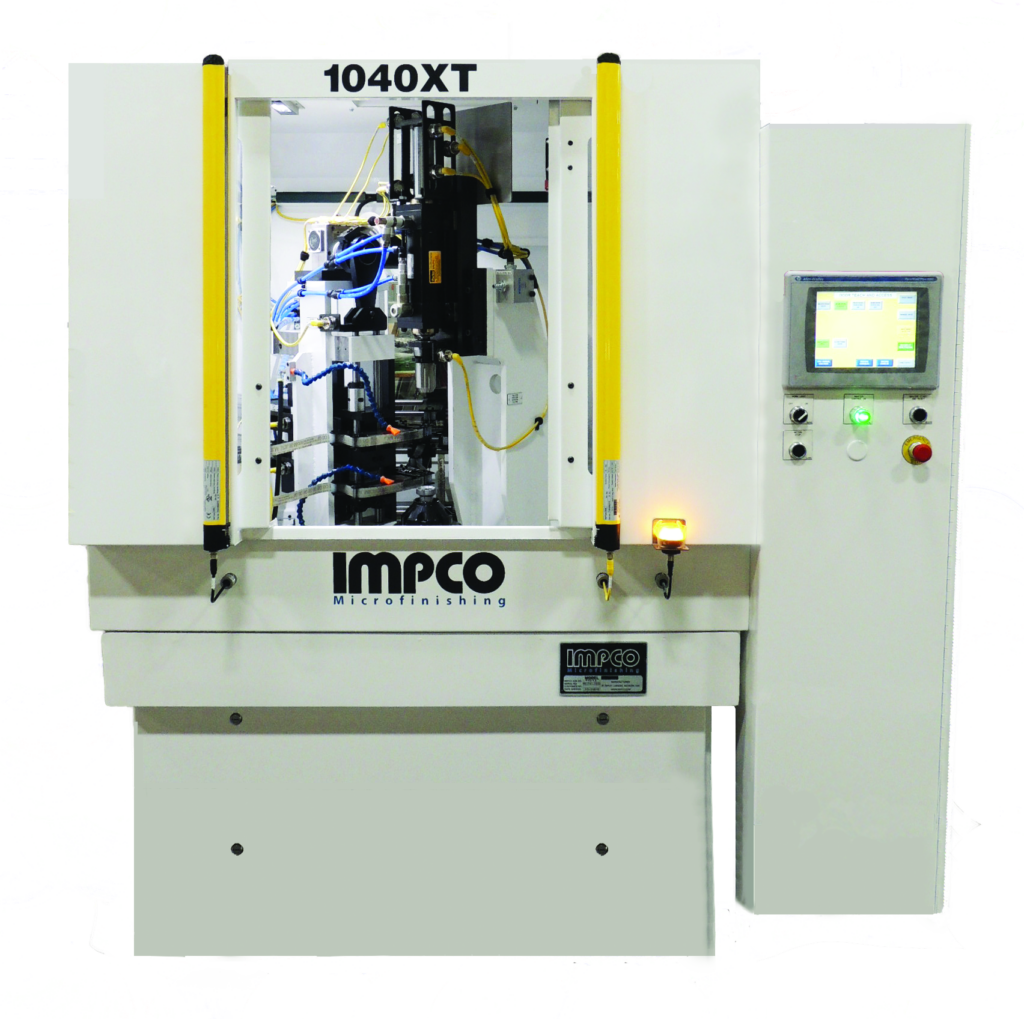

1040XT
- Continuous outside diameter centerless microfinisher for small shaft components
- Good for high volume finishing
- Max part length 550mm
- Max part diameter 90mm
Pump Gears
Microteq
- Compact, flexible microfinisher can handle balance shafts, printing drums, pump gears, transmission shafts, turbine shafts
- Perfect for low production or repair work
- Easy change over
- Max part length 490 mm
- Max part diameter 75 mm

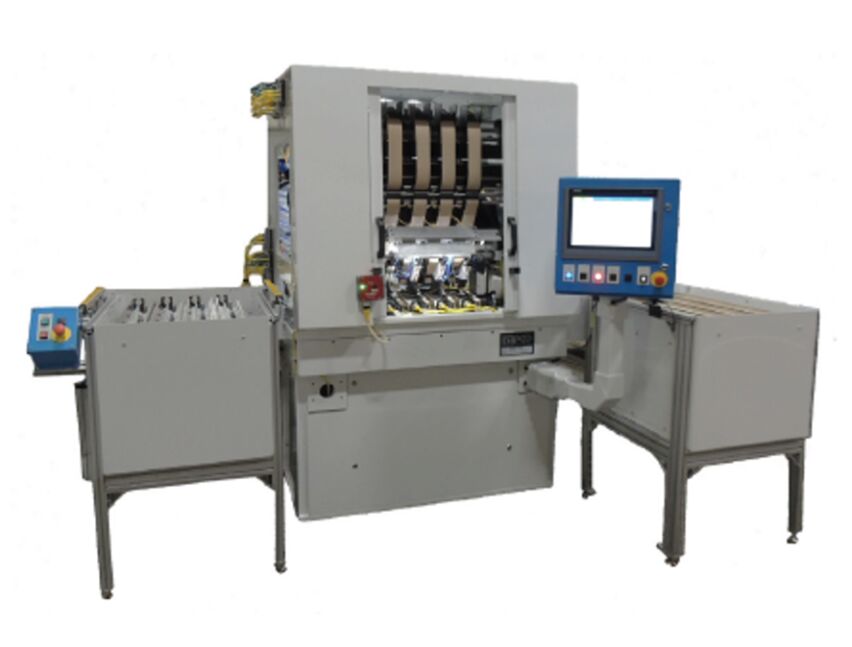

1140
- High throughput centerless roller-drive microfinisher
- Outside diameter polisher for small shaft-type components
- Max part length 500mm
- Max part diameter 12mm

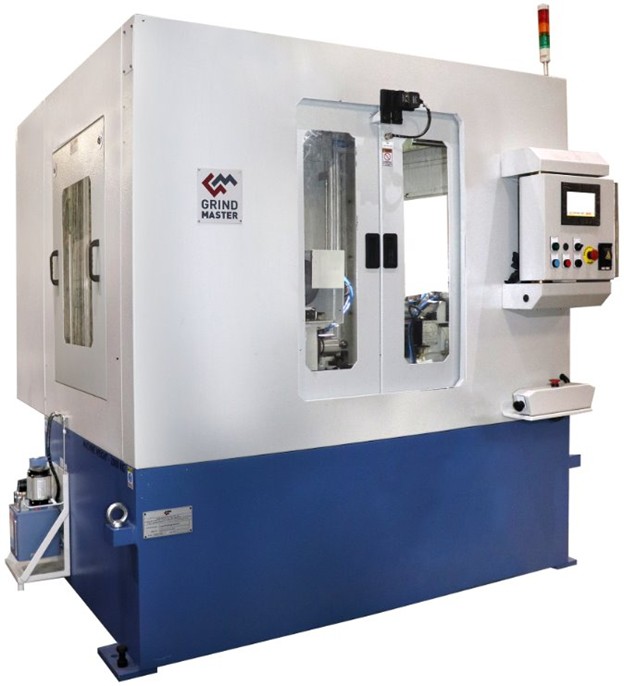

SMP500 Gear Pumps & Shafts
- Outside diameter microfinisher design specifically for gear pump shafts.
- Multiple control options: Siemens, Fanuc, Mitsubishi, Beckhoff
- Surface Finish Input - 0.3 μm Ra
- Surface Finish Output - 0.05 μm Ra
Steering Rack Bars
IMPCO is the exclusive North American distributor for GrindMaster products, providing both Sales & Service.
Tulip Bell Shaft
Steering Rack Bar
SMP1000
- Outside diameter finishing
- Radial finishing with wheels -Â Ra 0.3
- Superfinishing with Film – Ra 0.05
- Linear Finishing with wheels – Ra 0.2
- Max part length 900mm
- Max part diameter 22-32mm
Heavy Hydraulic Pistons & Shafts
IMPCO is the exclusive North American distributor for GrindMaster products, providing both Sales & Service.

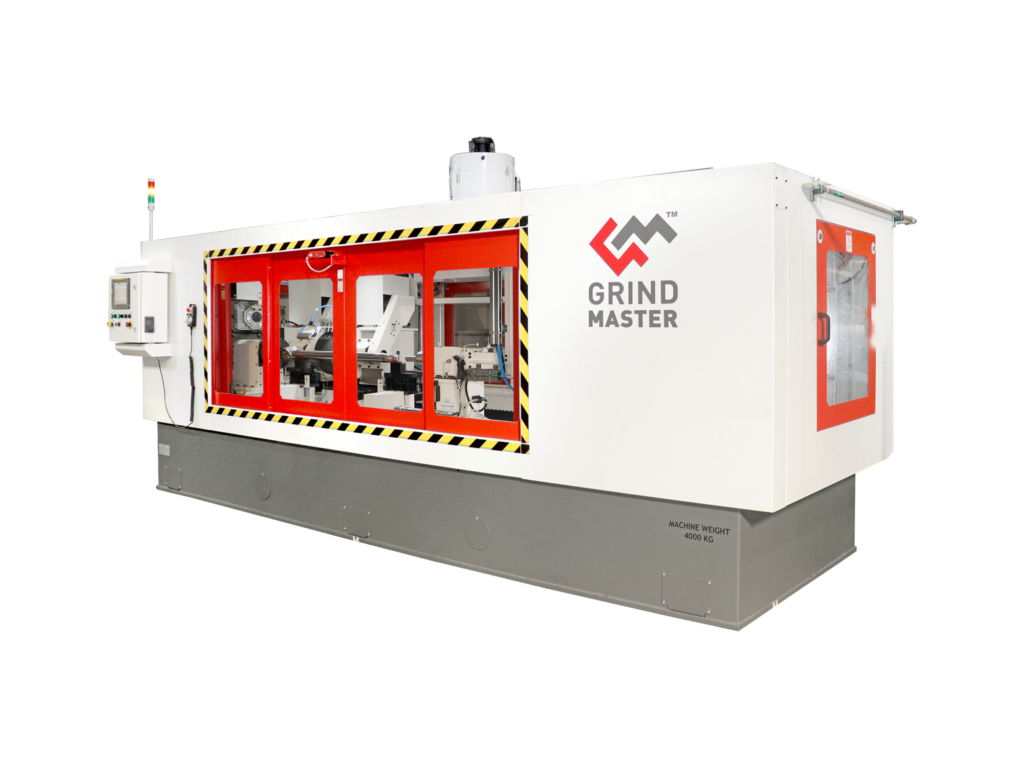

SMP2000 & SMP3000 Heavy Hydraulic piston rods & shafts
- Outside diameter microfinisher for heavy hydraulic piston rods & shafts
- Use a combination of finishing: belt, wheel and film for superior finish
- Surface Finish Input - 0.4 to .5 microns Ra
- Surface Finish Output - 0.025 to .1 microns Ra
Pin-Type Parts
IMPCO is the exclusive North American distributor for GrindMaster products, providing both Sales & Service.
CST600
- A high-productivity centerless throughfeed microfinisher designed for piston pins and piston rods.
- Good for high-volume finishing with minimal changeover time
- Diameter range: 10-75mm
- Max length 600mm
- Surface finish output - 0.042 μm Ra
Other Centerless Components
Microteq
- Compact, flexible microfinisher can handle balance shafts, printing drums, pump gears, transmission shafts, turbine shafts
- Perfect for low production or repair work
- Easy change over
- Max part length 490 mm
- Max part diameter 75 mm
Get in Touch for Tailored Microfinishing Solutions
Reach out to IMPCO Microfinishing Systems to explore how our advanced microfinishing solutions can enhance your product's performance and quality. Our team is ready to assist you in finding the perfect fit for your specific needs.
